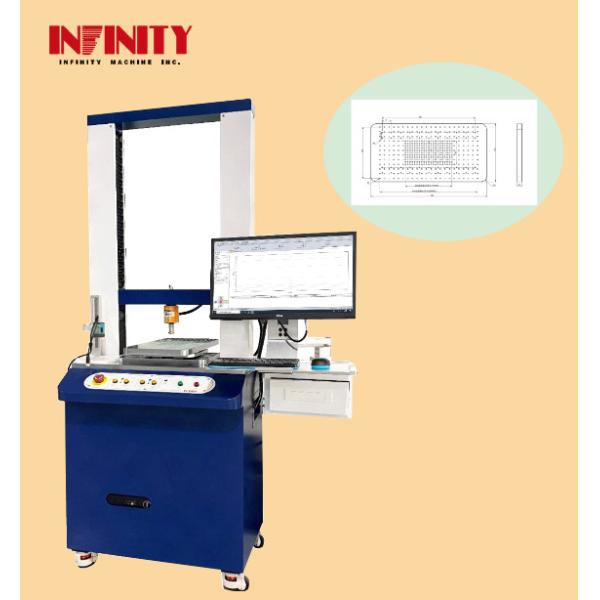

High Precision Push and Pull Testing machine with Scan Accuracy ≥4mil
Product Description:
The Push and Pull Testing machine has a displacement decomposition degree of 0.001mm, which ensures high accuracy and precision in measuring the displacement of the specimen during the test. The test speed of the machine is adjustable from 0 to 1000mm/min, which provides flexibility in performing the test as per the requirements. The machine is equipped with a high-precision displacement measurement system that has an accuracy of ±0.05mm, ensuring accurate measurement of the displacement of the specimen.
The test trip of the Push and Pull Testing machine is 0-600mm, which provides ample space for testing various materials of different sizes. The machine is capable of performing tests on a wide range of materials, including metals, plastics, rubber, textiles, wood, and ceramics. The machine can also perform compression, bending, and shear tests, making it a versatile testing machine for various applications.
The Push and Pull Testing machine is equipped with a code reading system that has a reading accuracy of ≥4mil. This system allows the machine to scan the code on the specimen and retrieve the relevant testing data, making the testing process more efficient and accurate. The machine is also equipped with a user-friendly software system that enables users to control and monitor the testing process.
In conclusion, the Push and Pull Testing machine is a reliable and versatile testing machine that can perform a wide range of tests on various materials. With its high accuracy and precision, adjustable test speed, and wide test trip, it is an ideal choice for research institutes, quality control departments, and production companies that require reliable and accurate material testing.
Features:
- Product Name: Push and Pull Testing machine
- Scan the code reading accuracy: ≥4mil
- Test trip: 0~600mm
- Source: AC220V 5A 50Hz Or Is Specified
- Force value accuracy: ±0.3%
- Effective width: 420mm
- Features: Tensile Testing Machine
Technical Parameters:
| Product name: | Push and Pull Testing machine |
| Model: | IF3231 |
| Test speed: | 0~1000mm/min |
| Speed accuracy: | ±0.5% |
| Test trip: | 0~600mm |
| Displacement measurement accuracy: | ±0.05mm |
| Scan the code reading accuracy: | ≥4mil |
| Machine weight: | 185kg |
| Source: | AC220V 5A 50Hz Or Is Specified |
| Host size (WxDxH): | 1167x700x1770mm |
Applications:
The Infinity Machine IF3231 Push and Pull Testing machine is a powerful and versatile piece of equipment that can be used for a variety of testing applications. This push and pull testing machine is made in China and certified with CE and ISO, ensuring high quality and reliability. The machine has a force value sensor capacity of 500kg and a weight of 185kg, making it suitable for a wide range of testing scenarios.
Whether you need to test the tensile strength of a material or the compression resistance of a component, the IF3231 is up to the task. The machine is equipped with a code scanner that can scan the QR code of the product, making it more convenient to manage the test data of the corresponding product. The real-time display of the current force value and displacement changes can be displayed as force-stroke (kgf-mm) or force-time (kgf-time) curve diagram.
The IF3231 also allows you to select a test report, which can be directly printed or saved as Word, Excel, PDF, and other formats. The motion shaft is driven by a Japanese Panasonic servo motor, precision ball screw drive, low noise, and durable use. The machine has a language option with simplified/traditional/English three operation interfaces that can be switched and the force value unit can be switched between N, Lb, Gf, and Kgf to suit global customers.
The IF3231 features a manual X and Y platform that allows you to change the test position arbitrarily. It also has an open force value protection function that sets a protection value according to the conventional test force. When operating or point movement, it will automatically stop moving to reduce damage to the equipment and precision samples. The floor structure design of the whole machine makes the operator closer to the test area and more convenient for sample loading and unloading.
The test method management logic is clear, and the new method provides the correctness check of the parameters and provides error information. The test data is stored in a local database for easy access and query. According to the customer agreement, it has data upload functions such as trace and PDCA. The IF3231 is an excellent choice for anyone who needs a reliable and versatile push and pull testing machine that can handle a wide range of testing scenarios.
The packaging details of the product include clear sheet+sponge+wood carton, and the delivery time is 20-30 days after order confirmation. The payment terms include TT, PayPal, Moneygram, and other options, and the supply ability is 200 sets/month. The host size of the machine (WxDxH) is 1167x700x1770mm, and the speed accuracy is ±0.5%. The minimum order quantity is one, and the price is negotiable.
1. All test conditions are input by computer and automatically stored: load measurement range, stroke measurement range, total number of measurements, measurement speed, measurement direction, pause time, stay time, etc.
2. Plot of the conductive force-stroke (kgf-mm) and force-time (kgf-time).
3. Automatically calculate the maximum force value, maximum displacement, test time, product bar code information and so on.
4. The upper and lower limits can be set, and the Passed or Fail is automatically determined by the software.
Customization:
The minimum order quantity is 1 and pricing is negotiable. Packaging details include a clear sheet, sponge, and wood carton. Delivery time is typically 20-30 days after order confirmation. We accept payment via TT, PayPal, Moneygram, and other methods.
Our supply ability is 200 sets per month. The force value accuracy of the machine is ±0.3%, and the scan code reading accuracy is ≥4mil. The host size is 1167x700x1770mm and the force value sensor capacity is 500Kg.
The equipment is used for all kinds of electronic components, materials, and products for stretching and pressure testing to determine its structural resistance strength. The machine can implement destructive pressing or stretching and automatically judge the test, concluding after rupture and obtaining the maximum force value and displacement of the product. Constant force tests can be carried out to obtain the life of the product under a certain force.
Support and Services:
- Installation and setup assistance
- Calibration and verification
- Preventative maintenance and repairs
- Training and education on machine operation and software
- Customization and upgrades to meet specific testing needs
We pride ourselves on delivering timely and efficient support to our customers, and are committed to ensuring that your Universal Testing Machine is always operating at maximum efficiency.
Packing and Shipping:
Product Packaging:
The Universal Testing Machine will be securely packaged in a wooden crate to ensure safe transportation. The package dimensions are 120cm x 80cm x 150cm and the weight is approximately 400kg.
Shipping:
The product will be shipped via sea freight and the estimated delivery time is 4-6 weeks. The shipping cost will be included in the total price of the product.
FAQ:
Q1: What is the brand name of this Pull and Push testing machine?
A1: The brand name of this Push and Pull Testing machineis Infinity Machine.
Q2: What is the model number of this Pull and Push testing machine?
A2: The model number of this Push and Pull Testing machine is IF3231.
Q3: Where is this Pull and Push testing machine made?
A3: This Push and Pull Testing machine is made in China.
Q4: What certifications does this Pull and Push testing machine have?
A4: This Push and Pull Testing machine has CE and ISO certifications.
Q5: What is the minimum order quantity for this Pull and Push testing machine?
A5: The minimum order quantity for this Push and Pull Testing machine is 1.
Q6: What is the price of this Pull and Push testing machine?
A6: The price of this Push and Pull Testing machine is negotiable.
Q7: What are the packaging details of this Pull and Push testing machine?
A7: The packaging details of this Push and Pull Testing machine are clear sheet+sponge+wood carton.
Q8: What is the delivery time for this Pull and Push testing machine?
A8: The delivery time for this Push and Pull Testing machine is 20-30 days after order confirmed.
Q9: What are the payment terms for this Pull and Push testing machine?
A9: The payment terms for this Push and Pull Testing machine are TT PAYPAL Moneygram and so on.
Q10: What is the supply ability of this Pull and Push testing machine?
A10: The supply ability of this Push and Pull Testing machineis 200 sets / month.
